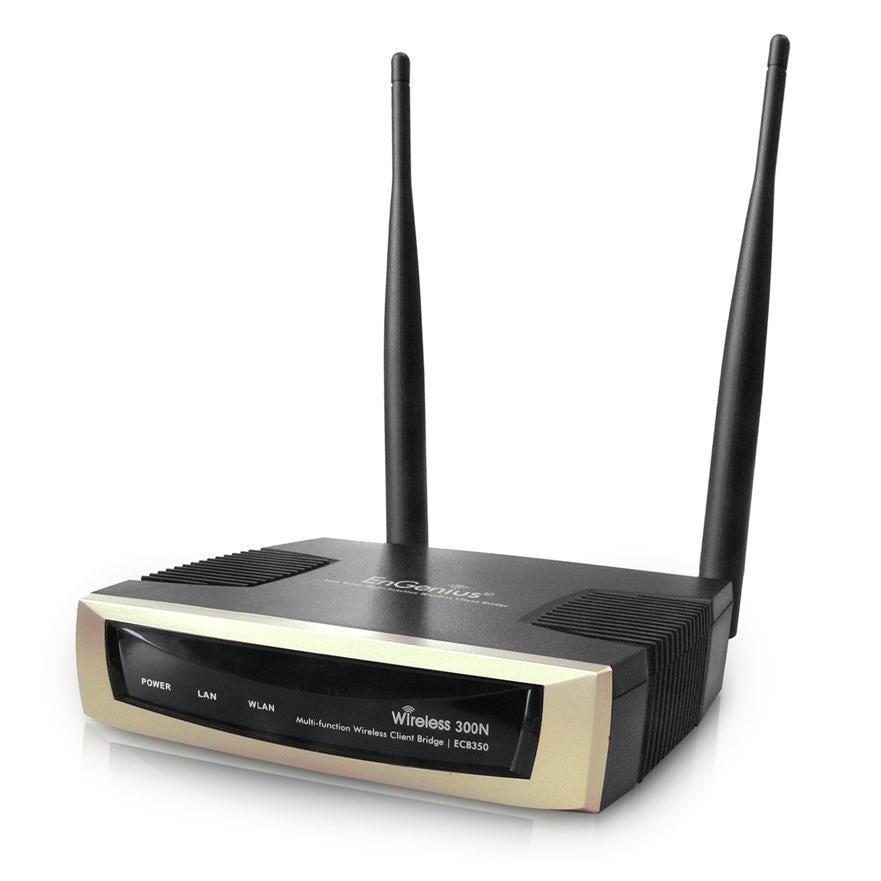

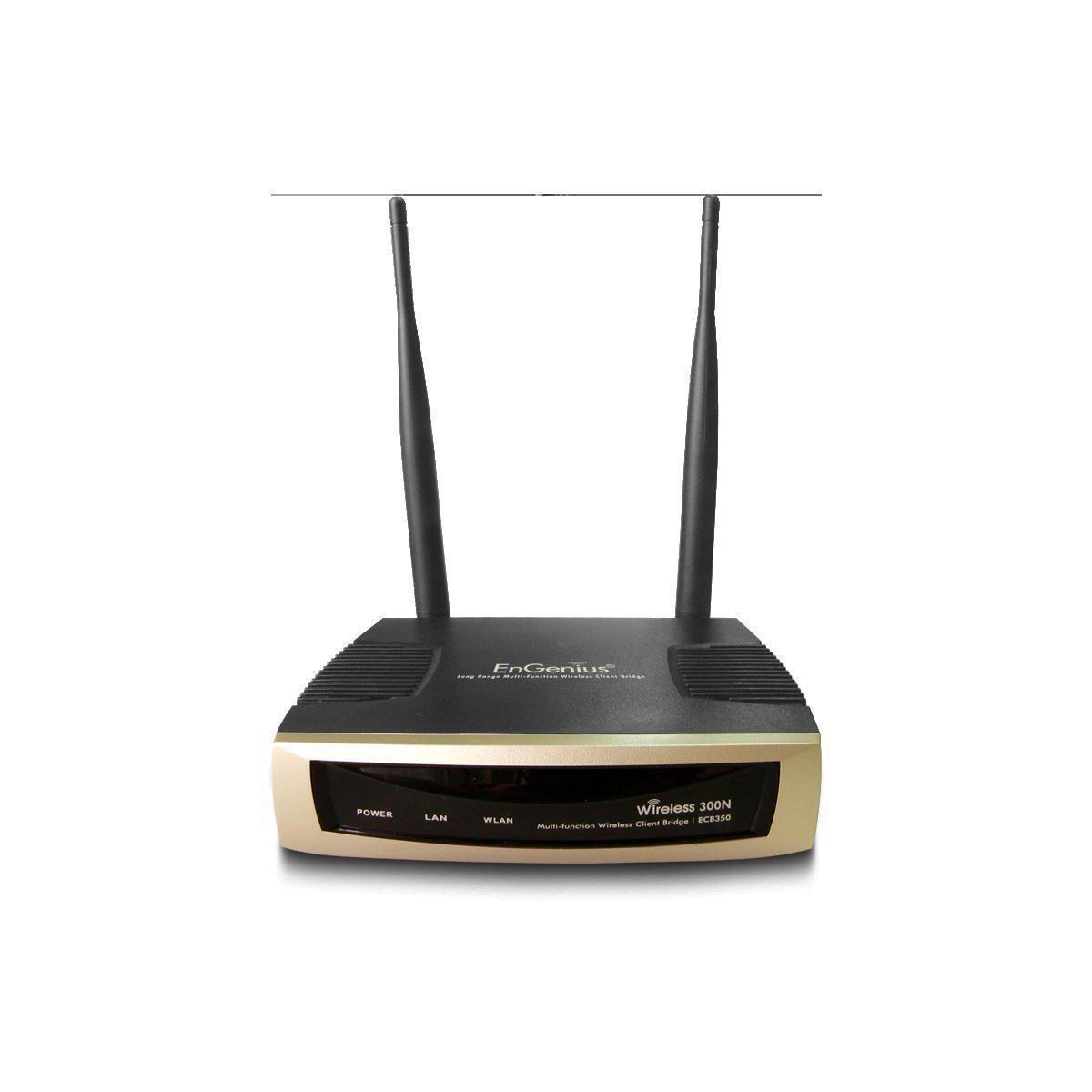

EnGenius ECB350 Wireless Indoor Access Point Bridge

  • $139.00

EnGenius ECB350 Wireless-N300 Indoor Access Point/Bridge with Gigabit:

  • High-powered, long-range wireless N300 indoor Gigabit Access Point/Client Bridge
  • The EnGenius ECB350 is an ideal solution for expanding an existing network and increasing bandwidth to support additional users. This 2.4 GHz Wireless-N Indoor Access Point/Client Bridge that features up to 29 dBm RF Tx (transmit) power for long range coverage, wireless speeds up to 300 Mbps and a Gigabit Ethernet port for connecting to a switch or router.The ECB350 delivers up to 6x faster speeds and 7x extended coverage than lower-power, legacy 802.11g access points. For small-to-medium-sized business networks and for larger homes, the ECB350 provides superior throughput, performance and unparalleled wireless range.
  • Desk top/wall mount style
  • ECB350 includes 2 detachable/upgradeable omni-directional SMA 5dBi antennas
  • Supports 802.1q SSID to VLAN tagging
  • Supports 802.1d Spanning Tree Protocol
  • Operation Modes: Access Point, Client Bridge, WDS Bridge, WDS Access Point, WDS Station, Universal Repeater, Access Point Router, Client Router
  • Frequency: 2.4GHz
  • Data Rate: Up to 300 Mbps
  • Memory: 32MB
  • Power Consumption: 7W
  • Ports: 1 RJ45 Gigabit Ethernet
  • ECB350 includes power requirements: PoE 802.3af, AC Adapter 48VDC/.375A
  • QoS: Wireless Multimedia (WMM)
  • VPN: Pass-through (PPTP, L2TP, IPSec)
  • Security: WPA/WPA2 Personal, WPA/WPA2 Enterprise, 802.1x RADIUS Authenticator, SSID broadcast enable/disable, MAC Address Filtering w/ up to 50 fields, L2 Isolation, Wireless STA connected list
  • Bridging: PPPoE in Client Router mode, PPTP for implementing VPNs

ECB350 Indoor Project Matrix

ECB350 Specifications

ECB350 User Manual

ECB350 Electron Series Brochure
