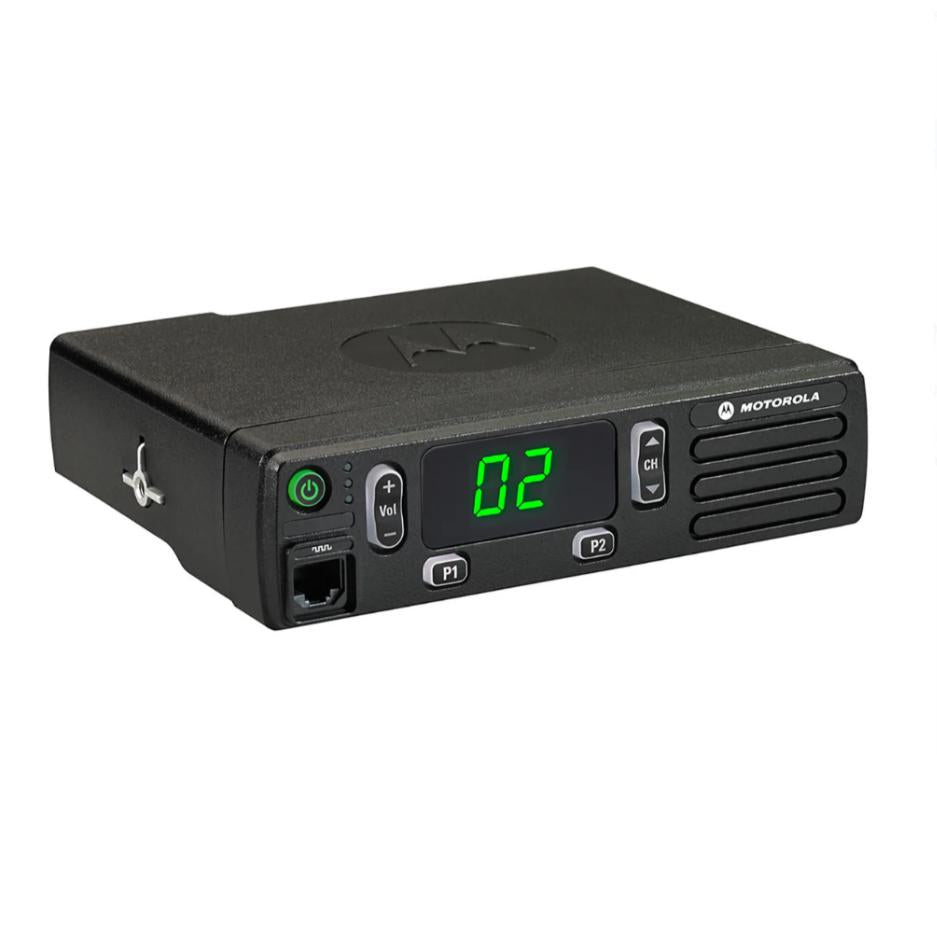

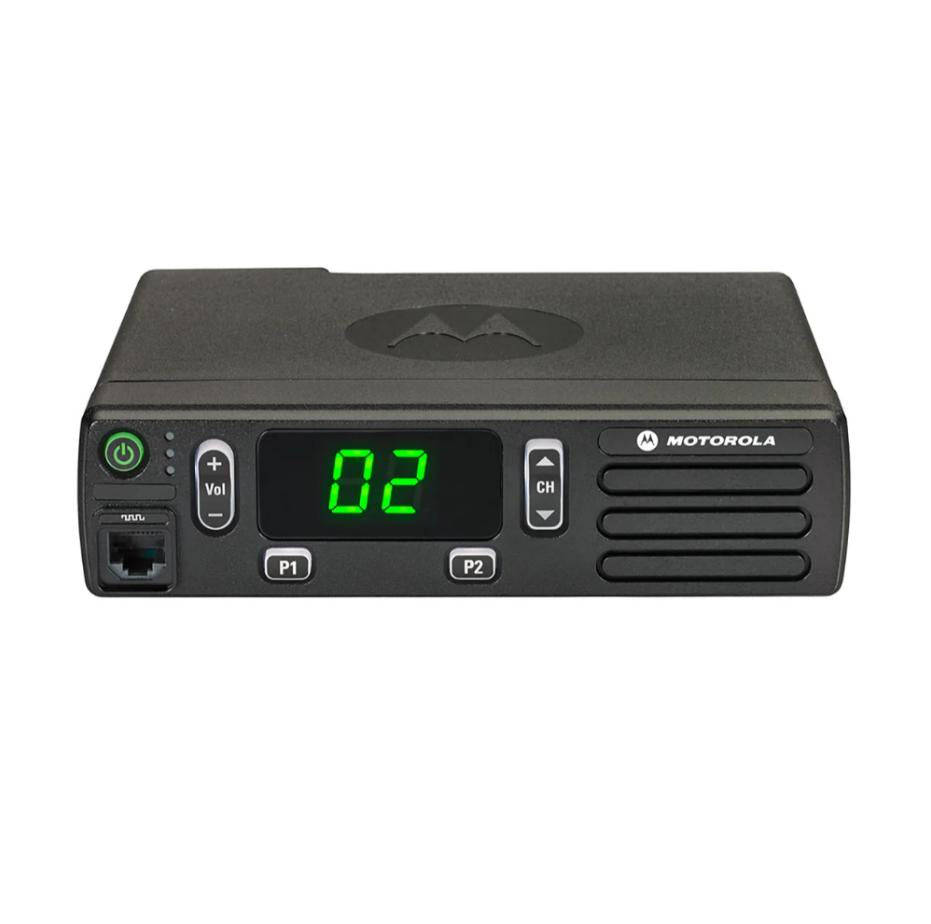

Motorola CM200D-UA25 CM200D UHF ANALOG 25 Watt Mobile Radio AAM01QNC9JC1AN

In stock
SKU: CM200D-UA25
Regular price $689.00
Regular price Sale $799.00 Sale price $689.00

Motorola CM200D-UA25 CM200D UHF 403-470 MHz 25 Watts Mobile Radio ANALOG 16 Channels AAM01QNC9JC1AN

The MOTOTRBO CM200d mobile radio is a reliable, cost-efficient solution to keep your team in contact so they can communicate, coordinate and collaborate for maximum efficiency and safety. The CM200d is designed for the everyday driver, so your workers can connect without distraction, whether they’re delivering cargo, dispatching trucks, or driving a school bus. The CM200d is easy to use and delivers clear communication for maximum efficiency of your operation.

GENERAL SPECIFICATIONS:

  • Channel Capacity: 16
  • Typical RF Output:
    • Low Power: 1-25 W
    • High Power: 25-40 W
  • Frequency Range: 403-470 MHz
  • Dimensions: 1.7 x 6.7 x 5.3 inches (44 x 169 x 134 mm)
  • Weight: 2.9 lbs (1.3 kg)
  • Current Drain:
    • Standby: 0.81 A max
    • Rx @ Rated Audio Transmit: 2 A max
  • FCC Description:
    • 1-25 W: 11.0 A max
    • 25-40 W: 14.5 A max
  • Receiver:
    • Frequency: 403-470 MHz
    • Channel Spacing: 12.5 kHz / 25 kHz
    • Frequency Stability: ± 0.5 ppm
    • Sensitivity: 0.22 uV (typical)
    • Audio Distortion @ Rated Audio: 0.25 uV
    • Hum and Noise: 0.19 uV (typical)
    • Audio Response: 70 dB
    • Conducted Spurious Emissions: 50 dB @ 12.5 kHz
  • Transmitter:
    • Frequency: 403-470 MHz
    • Channel Spacing: 12.5 kHz / 25 kHz
    • Frequency Stability: ± 0.5 ppm
    • Low Power Output: 1-25 W
    • High Power Output: 25-40 W
    • Modulation Limiting: ± 2.5 kHz @ 12.5 kHz / ± 5.0 kHz @ 25 kHz
    • FM Hum and Noise: -40 dB @ 12.5 kHz / -45 dB @ 25 kHz
    • Conducted / Radiated Emission: -57 dBm

INCLUDES:

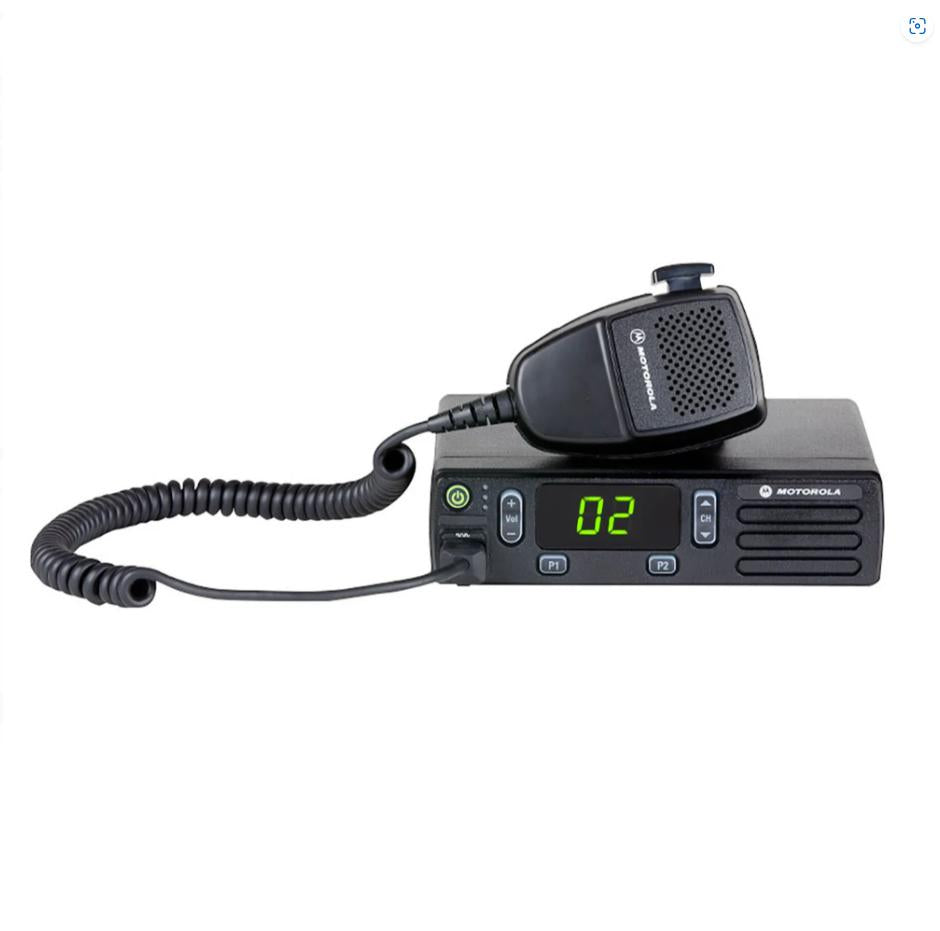

Standard Microphone (Compact Mic with Transmit LED, Hang-Up Clip & 7 Ft. Coil Cord - PMMN4090)
Standard Inst Bracket (Low Profile Mounting Bracket - RLN6469)
Standard Power Cable (HKN4137)
Two Year Warranty

Additional Motorola Two Way Radio accessories available: BatteriesSpeaker Mics, earpieces, chargers, belt clips and more!
