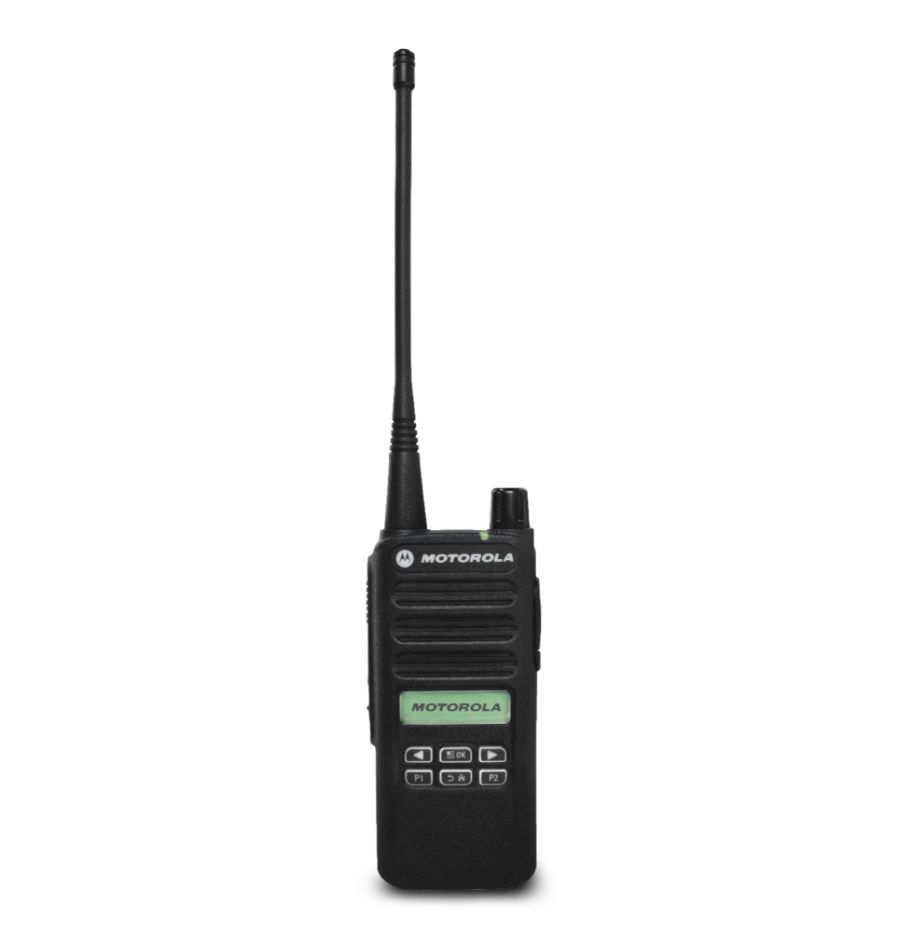

Motorola CP100D-U-L1-LKP UHF Digital Two Way Radio with Display AAH87YDH9JA2AN)

In stock
SKU: AAH87YDH9JA2AN
Regular price $509.00
Regular price Sale $659.00 Sale price $509.00

Motorola CP100D-U-L1-LKP UHF Digital Two Way Radio with Display AAH87YDH9JA2AN)

The Motorola CP100D-U-L1-LKP is a versatile and affordable UHF digital two-way radio designed for seamless business communications. This model features a clear display and limited keypad, making it easy to use and navigate. With the ability to operate in both analog and digital modes, the CP100D offers a straightforward path to digital migration. Key benefits include up to 35% longer talk-time, twice the voice capacity in a 12.5 kHz licensed channel, and superior audio quality. Ideal for professionals who value efficiency and reliability, the CP100D ensures clear and consistent communication across your team.

General Specifications:

  • Frequency Range: UHF 403-480 MHz
  • Channel Capacity: 16 channels
  • Typical RF Output:
    • Low Power: 1 W
    • High Power: 4 W
  • Radio Dimensions (H x W x D) with Battery:
    • Li-Ion 1700 mAh: 4.7 x 2.2 x 1.4 in (120.0 x 55.0 x 36.5 mm)
    • High Cap Li-Ion 2250 mAh: 4.7 x 2.2 x 1.6 in (120.0 x 55.0 x 40.6 mm)
  • Weight with Battery:
    • Li-Ion 1700 mAh: 10.4 oz (295 g)
    • High Cap Li-Ion 2250 mAh: 10.6 oz (300 g)
  • Power Supply: 7.5V (Nominal)

Battery:

  • Average Battery Life (5/5/90 Duty Cycle with Carrier Squelch and Transmitter in High Power):
    • Li-Ion 1700 mAh: Analog: 10.7 hrs / Digital: 14.4 hrs
    • High Cap Li-Ion 2250 mAh: Analog: 15.0 hrs / Digital: 20.0 hrs

Receiver:

  • Frequency: 403-480 MHz
  • Channel Spacing: 12.5 kHz / 25 kHz
  • Frequency Stability (-30°C, +60°C, +25°C Ref): ± 0.5 ppm
  • Analog Sensitivity (12 dB SINAD): 0.3 µV / 0.22 µV (typical)
  • Digital Sensitivity (5% BER): 0.25 µV / 0.19 µV (typical)
  • Intermodulation (TIA603D): 70 dB
  • Adjacent Channel Selectivity (TIA603D): 45 dB @ 12.5 kHz / 70 dB @ 25 kHz
  • Spurious Rejection (TIA603D): 70 dB
  • Rated Audio: 0.5 W (Internal)
  • Audio Distortion @ Rated Audio: 5% (3% typical)
  • Hum and Noise: -40 dB @ 12.5 kHz / -45 dB @ 25 kHz
  • Audio Response: TIA603D
  • Conducted Spurious Emissions (TIA603D): -57 dBm

Transmitter:

  • Frequency: 403-480 MHz
  • Channel Spacing: 12.5 kHz / 25 kHz
  • Frequency Stability (-30°C, +60°C, +25°C Ref): ± 1.5 ppm
  • Low Power Output: 1 W
  • High Power Output: 4 W
  • Modulation Limiting: ± 2.5 kHz @ 12.5 kHz / ± 5.0 kHz @ 25 kHz
  • FM Hum and Noise: -40 dB @ 12.5 kHz / -45 dB @ 25 kHz
  • Conducted / Radiated Emission: -36 dBm < 1 GHz / -30 dBm > 1 GHz
  • Adjacent Channel Power: 60 dB @ 12.5 kHz / 70 dB @ 25 kHz
  • Audio Distortion: 3% (typical)
  • 4FSK Digital Modulation: 12.5 kHz Data: 7K60F1D and 7K60FXD
  • Digital Vocoder Type: AMBE +2™
  • Digital Protocol: 12.5 kHz Voice: 7K60F1E and 7K60FXE, Combination of 12.5 kHz Voice and Data: 7K60F1W
