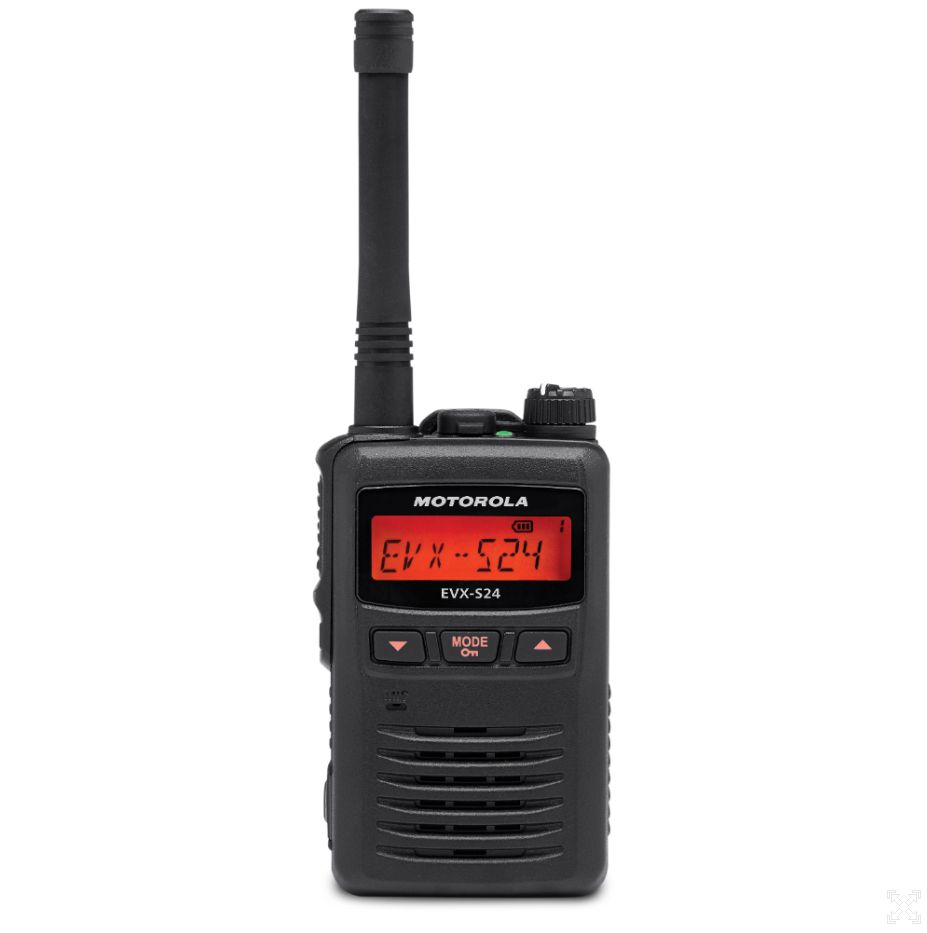

Motorola MEVXS24-U-BK-S EVX-S24 UHF Digital Portable Two Way Radio BLACK

In stock
SKU: MEVXS24-U-BK-S EVX-S2
Regular price $336.00
Regular price Sale $399.00 Sale price $336.00

Motorola MEVXS24-U-BK-S EVX-S24 UHF Digital Portable Two Way Radio BLACK

The Motorola EVX-S24 is a compact, lightweight, and durable UHF digital portable two-way radio designed for seamless business communications. With its IP67 rating, this radio is water-submersible and dust-proof, ensuring reliable performance in demanding environments. The EVX-S24 supports both analog and digital modes, making it ideal for mixed fleets. Key features include 256-channel capacity, clear audio with noise cancellation, and a long-lasting battery life. Perfect for on-site business use, the EVX-S24 keeps your team connected and productive.

  • Frequency Range: UHF 403 – 470 MHz
  • Dimensions (H x W x D): 3.58 x 2.17 x 1.24 inches (91 x 55 x 31.5 mm)
  • Weight (Approx. with Antenna, Belt Clip): 7.6 oz (215 g) with FNB-V142LI, ATU-20, Belt Clip
  • Display: 8 Character Alphanumeric
  • Channel Spacing: 25/12.5 kHz
  • Number of Channels and Groups: 256/16
  • Programmable Buttons: 4 (Front: 3, Side: 1)
  • Battery Life [5-5-90 Duty with Battery Saver]: Digital 3W: 12 Hours / Analog 2W: 11 Hours
  • IP Rating: 67
  • Power Supply Voltage: 3.7 VDC (Nominal)
  • Operating Temperature Range: -22º F to +140º F (-30º C to +60º C)
  • Frequency Stability: ± 1.5 ppm
  • RF Input-Output Impedance: 50 Ohms

Receiver Specifications (measured by TIA/EIA 603):

  • Sensitivity: Analog 12 dB SINAD: 0.25 µV, Digital 1% BER: 0.28 µV
  • Adjacent Channel Selectivity: TIA603: 70/60 dB (25 kHz/12.5 kHz), TIA603D: 70/45 dB (25 kHz/12.5 kHz)
  • Intermodulation: 70 dB
  • Spurious Rejection: 70 dB
  • Audio Output: 500 mW @ 4 Ohms 10% THD
  • FM Hum and Noise: 45/40 dB (25 kHz/12.5 kHz)
  • Conducted Spurious Emission: -57 dBm

Transmitter Specifications (measured by TIA/EIA 603):

  • Output Power: Digital 3 W/2 W/1 W/0.5 W, Analog 2 W/1 W/0.5 W
  • Modulation Limiting: ± 5 kHz (25 kHz); ± 2.5 kHz (12.5 kHz)
  • Conducted Spurious Emission: -36 dBm (≤1 GHz), -30 dBm (>1 GHz)
  • FM Hum and Noise: 45/40 dB (25 kHz/12.5 kHz)
  • Audio Distortion: < 5% @ 1 kHz
  • Adjacent Channel Power: 70/60 dB
  • Analog FM Modulation: 16K0F3E (25 kHz), 11K0F3E (12.5 kHz)
  • 4FSK Digital Modulation: 12.5 kHz Data: 7K60F1D/7K60FXD
  • Digital Vocoder Type: 12.5 kHz Voice: 7K60F1E/7K60FXE
  • Digital Protocol: Combination of 12.5 kHz Voice and Data: 7K60F1W

Great for Construction, Manufacturing, Property Management, Forestry, Warehouses, Education

Additional Motorola Two Way Radio accessories available: BatteriesSpeaker Mics, earpieces, chargers, belt clips and more!
