Motorola R2-UA-L2 R2 UHF Analog MOTOTRBO AAH11YDC9JC2A Two Way Radio

In stock
SKU: AAH11YDC9JC2AN
Regular price $559.00
Regular price Sale $699.00 Sale price $559.00

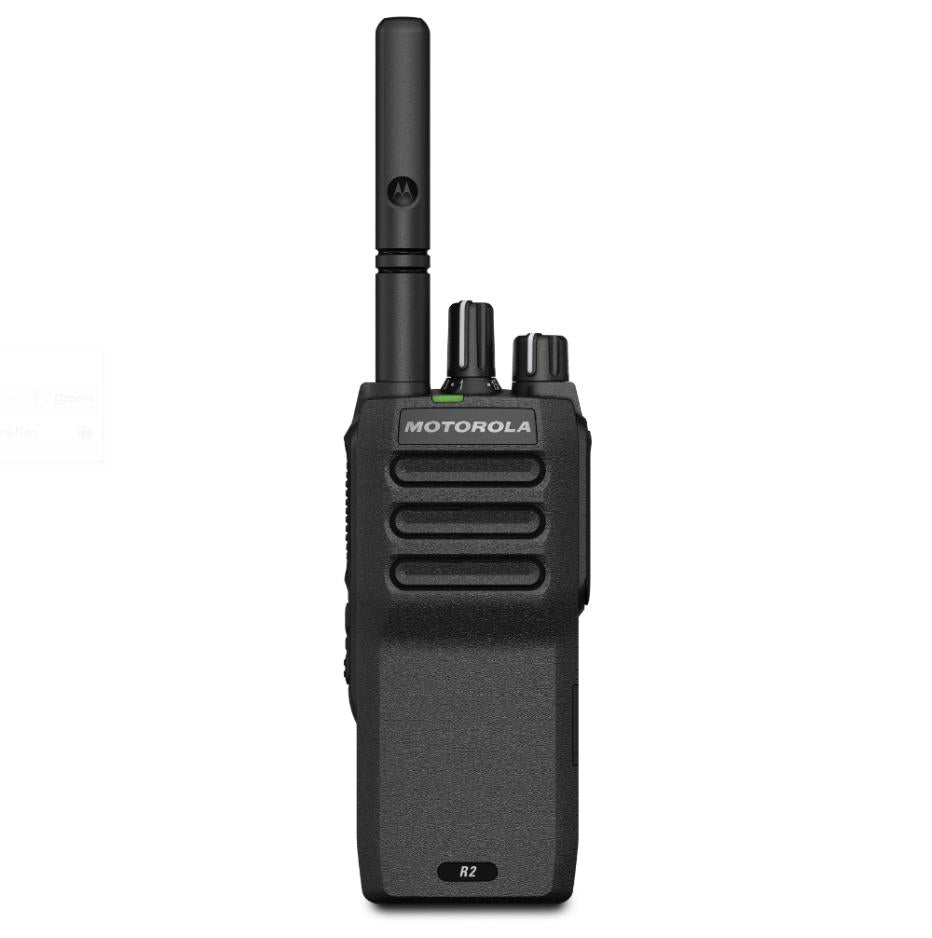

Motorola R2-UA-L2 R2 UHF Analog MOTOTRBO AAH11YDC9JC2A Two Way Radio

the R2-UA-L2 UHF Analog MOTOTRBO (Model #: AAH11YDC9JC2AN), a top-tier two-way radio equipped with a high-capacity battery for extended use. This advanced communication device offers exceptional range, robust build quality, and superior noise cancellation, ensuring clear and reliable communication in any setting. Perfect for industrial, commercial, and outdoor applications, the R2-UA-L2 is designed for professionals who require dependable performance and long-lasting battery life

General Specifications:

  • Frequency: 400-480 MHz (UHF)
  • Typical RF Output: 4W
  • High Power: 1W
  • Low Power: 12.5 / 25.01 kHz
  • Channel Spacing: 64
  • Channel Capacity: 125mm x 55mm x 36.8 mm
  • Dimensions (H x W x D) with Battery: 125mm x 55mm x 31.7mm
  • Weight with Battery:
    • PMNN4598 High Capacity Battery: 286g
    • PMNN4600 Slim Battery: 261g
  • Battery Life (Analog / Digital):
    • PMNN4598 High Capacity Battery: 19.5Hrs / 26.5Hrs
    • PMNN4600 Slim Battery: 17Hrs / 22.5Hrs
  • Power Supply: 7.5V (nominal)
  • FCC Description: AZ489FT4971
  • IC Description: 109U-89FT4971

Transmitter Specifications:

  • Digital Modulation: 4FSK
  • Digital Protocol: ETSI TS 102 361-1, -2, -3
  • Conducted/Radiated Spurious Emissions (TIA603E): < -36 dBm for < 1 GHz; < -30 dBm for > 1 GHz
  • Adjacent Channel Power: > 60 dB @ 12.5 kHz / > 70 dB @ 25 kHz
  • Frequency Stability: ± 0.5 ppm
  • Modulation Limiting: ± 2.5 kHz @ 12.5 kHz / ± 5.0 kHz @ 25 kHz

Receiver Specifications:

  • Analog Sensitivity (12dB SINAD): 0.18 μV (typical)
  • Digital Sensitivity (5% BER): 0.16 μV (typical)
  • Conducted/Radiated Spurious Emissions (TIA603E): < -57 dBm
  • Intermodulation (TIA603E): > 70 dB
  • Adjacent Channel Selectivity (TIA603A)-1T: > 70 dB
  • Adjacent Channel Selectivity (TIA603E)-2T: > 55 dB @ 12.5 kHz / > 70 dB @ 25 kHz
  • Spurious Rejection (TIA603E): > 60 dB @ 12.5 kHz / > 70 dB @ 25 kHz
  • Frequency Stability: ± 0.5 ppm

Audio Specifications:

  • Digital Vocoder Type: AMBE+2
  • Audio Response: TIA603E
  • Audio Output Power (Rated/Max): 1 W / 3 W
  • Audio Distortion at Rated Audio: 3% (typical)
  • Audio Output Power: 101 phon
  • Audio Distortion at Rated Audio: -40 dB @ 12.5 kHz / -45 dB @ 25 kHz

Additional Motorola Two Way Radio accessories available: BatteriesSpeaker Mics, earpieces, chargers, belt clips and more!
