Viking Electronics E-50-SS Video Entry Phone Stainless Steel

Viking Electronics E-50-SS Video Entry Phone Stainless Steel

  • $413.00
  • Save $156 Off Retail Price!


E-50-SS  Viking Electronics logo

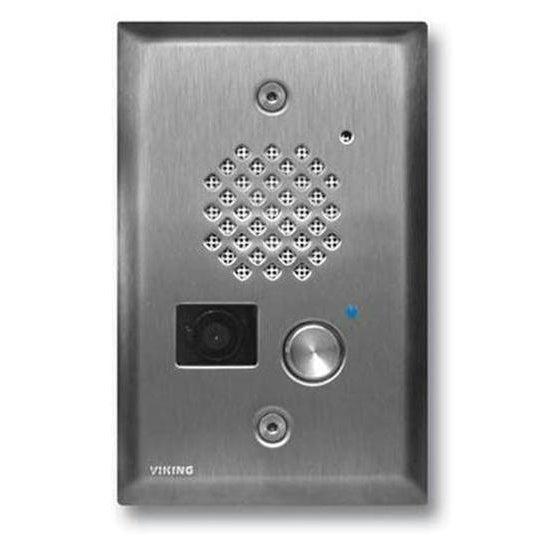

E-50-SS Viking Electronics Video Entry Phone Stainless Steel

  • Provide unique front and back door chimes and paging when used with a Viking SLP-1 and C-2000A
  • Use with a Viking K-1900-5 for automatic speed dialing on telephone lines or analog PABX/KSU station ports. Use on an analog PABX station port with programmable ringdown capability
  • Built-in high resolution color video camera with wide viewing. Tilt/swivel adjustments. Wide operating temperature of -30° F to 150° F l Audio and video transmission on one CAT5E cable
  • Compact size: front panel is the size of a typical single gang midsize wall plate
  • Mounting: flush mount in a single gang (1.7" deep x 2.1" wide min) electrical box or surface mount in a Viking model VE-3x5 (not included) Weather resistant features: mylar speaker, faceplate gasket, mic and speaker gasket, internally sealed (IP67) push button switch, sealed camera lens, potted camera circuit board, stainless steel phone and camera mounting hardware
  • E-50-SS has vandal resistant features: 18 gauge stainless steel faceplate, stainless steel push button, stainless steel speaker screen, impact and scratch resistant camera lens, and hex drive mounting screws
  • Mic and speaker volume controls. Programmable intelligent call progress detection for automatic hang-up on CPC, silence, busy signal, or time out. Selectable auto answer feature for monitoring. Programmable VOX (mic/speaker) switching speed
  • Speaker volume: approximately 62db maximum @ 1m
  • Power: telephone line powered (18 VDC/20mA minimum)
  • E-50-SS's dimensions: faceplate: 123.8mm x 79.4mm x 4.6mm (4.875" x 3.125" x 0.18"), phone board: 71mm x 46mm x 42mm (2.8" x 1.8" x 1.65")
  • Ring voltage: 25V AC RMS minimum (for auto answer)
  • CPC disconnect time: 300ms minimum

E-50 SERIES SPEC SHEET
